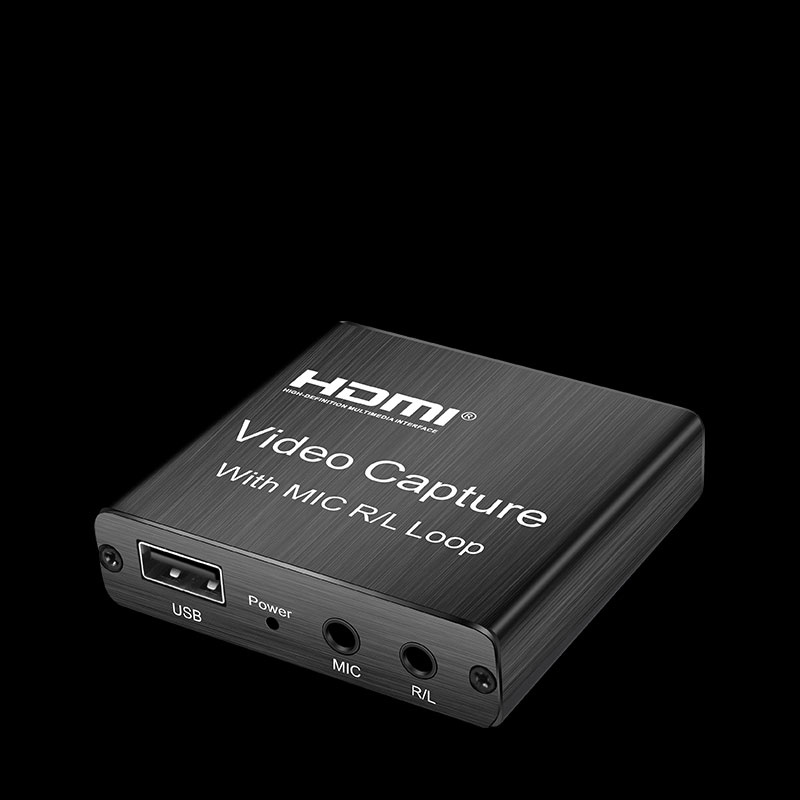

USB 2.0 Video Capture Card with Mic R/L Loop

This USB2.0 capture card can collect HDMI audio and video. The audio and video signals can be

transmitted to the computer and smartphone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

• Support input resolution up to 4K

• Support output resolution up to 1080P

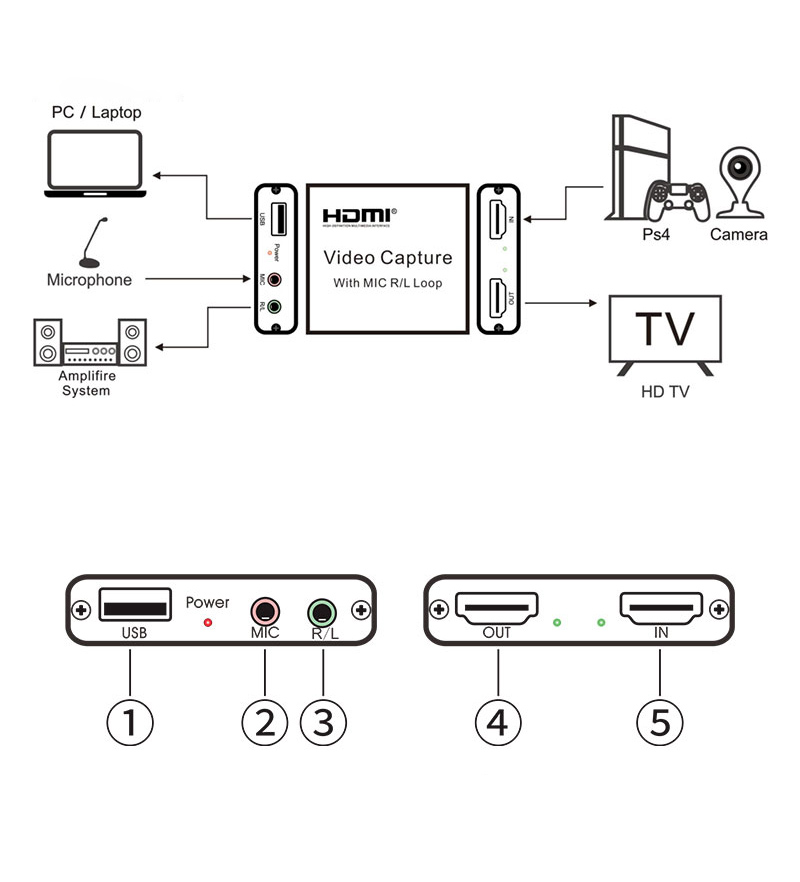

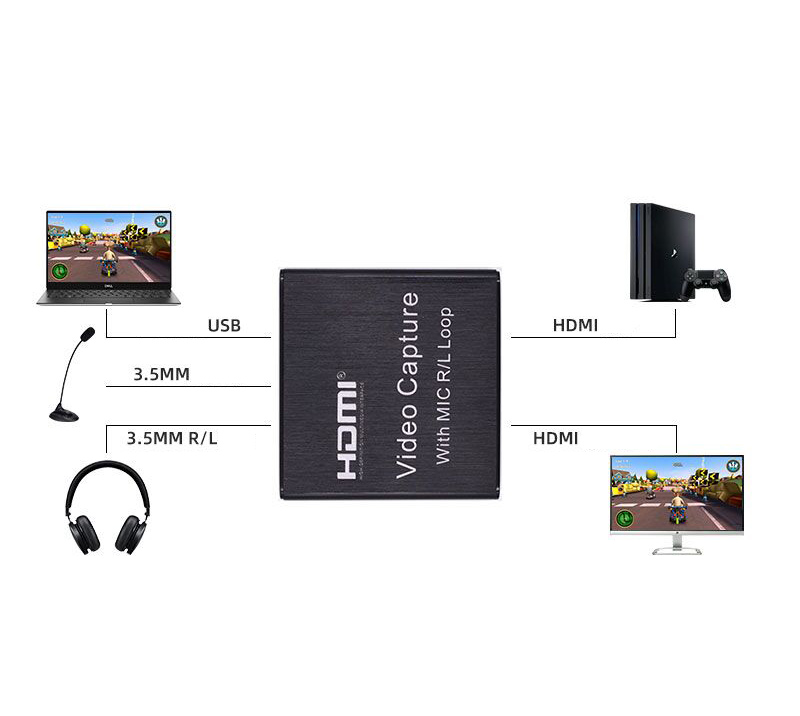

• One HDMI input, one HDMI loop out, watching and recording

• One Microphone input, record and speak

• One 3.5mm stereo output

• Support 8/10/12 bit color depth

• Support AWG26 HDMI standard cable, the maximum input transmission distance is 15 meters (1080P and below resolution)

• Support most acquisition software, such as VLC, OBS, Amcap, etc.

• Support Windows, Android and Mac OS

• Complies with USB video UVC specification

• Complies with USB audio UAC specification

• No external power supply, compact size, easy to carry

Specification:

• HDMI resolution: Maximum input support 4K

• Video input format:  8/10/12-bit color depth

• Video output mode: MJPEG

• Video output resolution: Maximum output resolution 1080P @ 30Hz

• Support audio format: LPCM

• Input cable length: ≤15m, AWG26 HDMI standard cable

• Maximum working current: 0.4A / 5V DC

• Operating temperature range: -10 ~ + 55 ℃

• Product size (LxWxH): 68x27x9mm

• Product weight: 50g
