Price:
$ 16.21

Free Shipping

For just $ 16.21 , buy MJ K22 Mini Universal Multi-function PCB Board Holder Fixture from the wholesale webshop online.

Specifications

Retail Packaging Colored Box
User Manual (Language) No User Manual
Gross Weight 0.224kg
Volume Weight 0.048kg
Length 13.500cm
Width 8.000cm
Height 2.000cm
Weight 0.200kg
With Retail Packaging Yes

Product Description

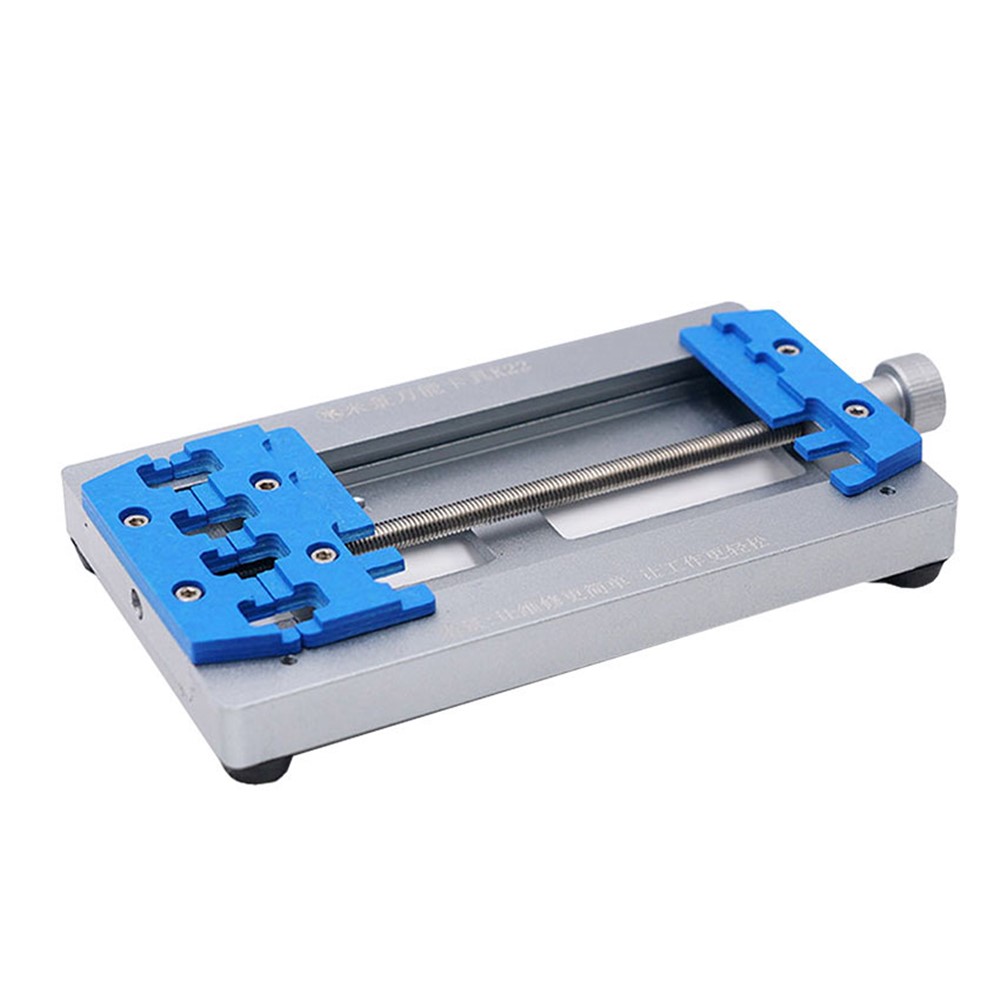

MJ K22 Mini Universal Multi-function PCB Board Holder Fixture

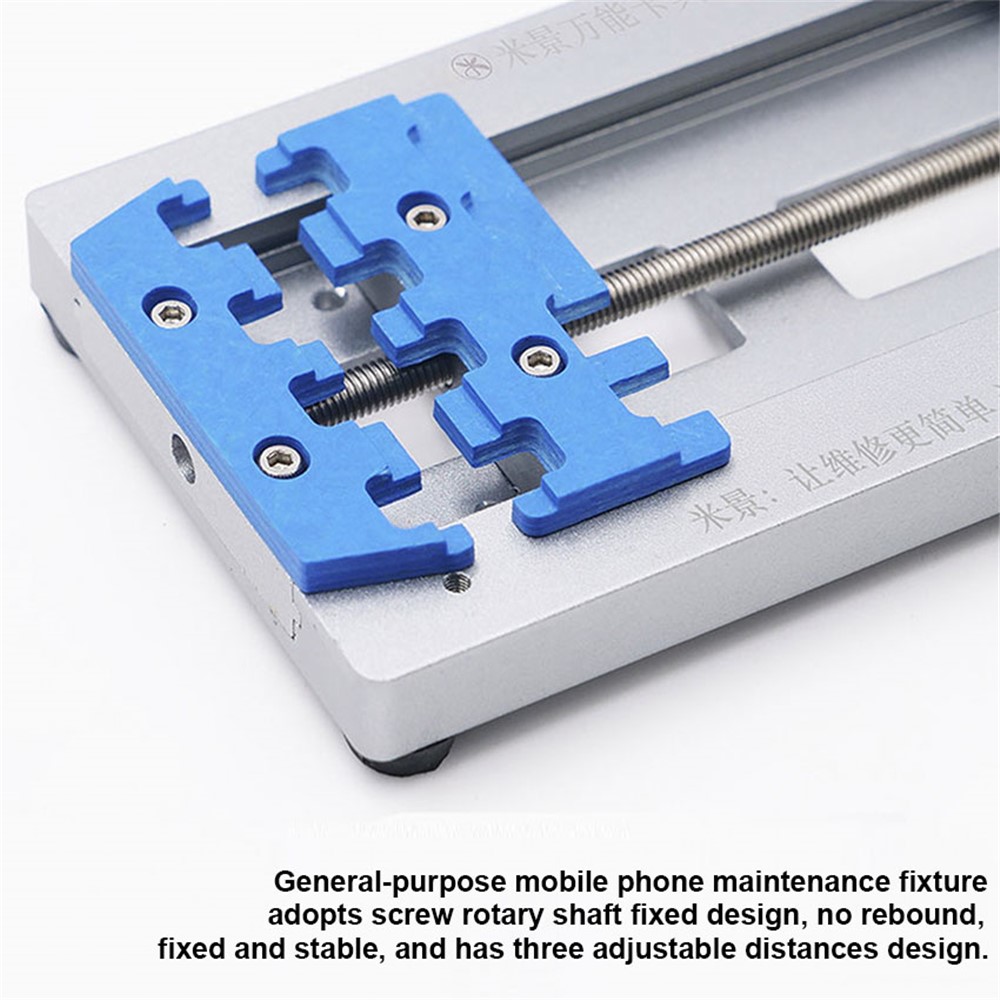

  • General mobile phone maintenance fixture, rotary fixed design, no rebound, fixed firmly

  • The design has three adjustable distances

  • Prevent clamps from moving during use, special anti-skid pad, in order to allow heating

  • Add heat sink to the bottom of the clamp to let the hot air can be discharged more efficiently

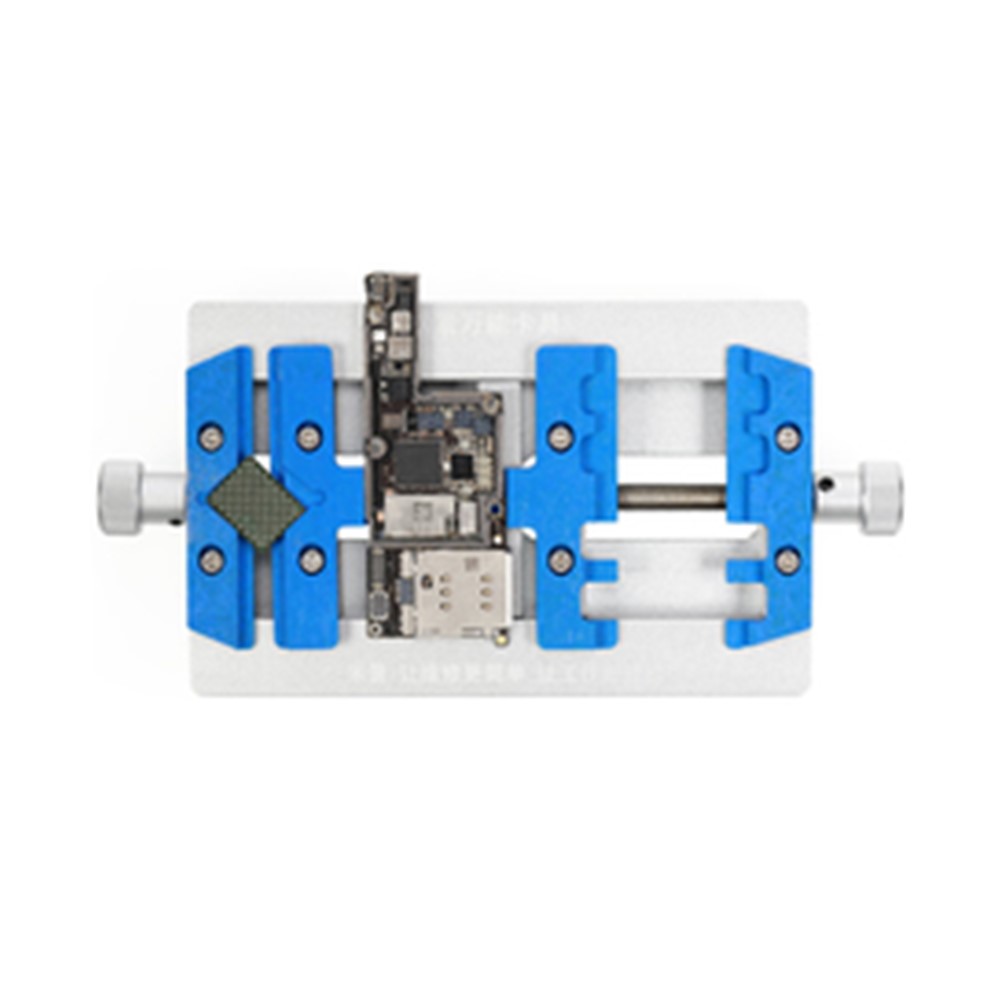

  • Rotary shaft locks the motherboard or IC more efficiently, Fixed well without a rebound

  • The fixture also supports IC type fixtures fixed for the removal of back glue, the clamp is designed to bear the force of IC beam, which can hold up the empty parts of IC well and avoid the IC breaking when removing black glue

  • The fixture can be adjusted at a different distance from the high, middle and low levels. It's necessary to loosen the two screw at the bottom, move the fixing plate to the appropriate gear position, and then tighten the bottom screws to lock it

Package included:

  • 1 x PCB Board Holder Fixture
MJ K22 Mini Universal Multi-function PCB Board Holder Fixture-1
MJ K22 Mini Universal Multi-function PCB Board Holder Fixture-2
MJ K22 Mini Universal Multi-function PCB Board Holder Fixture-3
MJ K22 Mini Universal Multi-function PCB Board Holder Fixture-4
MJ K22 Mini Universal Multi-function PCB Board Holder Fixture-5
MJ K22 Mini Universal Multi-function PCB Board Holder Fixture-6
MJ K22 Mini Universal Multi-function PCB Board Holder Fixture-7
