Price:
$ 0.77

Free Shipping

For just $ 0.77 , buy MC4 Cable Connector Male Female Photovoltaic Wire Set for Solar Panel System Waterproof – 1Pcs from the wholesale webshop online.

Specifications

ColorStyle A
Gross Weight 0.033kg
Volume Weight 0.020kg
Length 10.000cm
Width 3.000cm
Height 3.000cm
Weight 0.030kg
With Retail Packaging No

Product Description

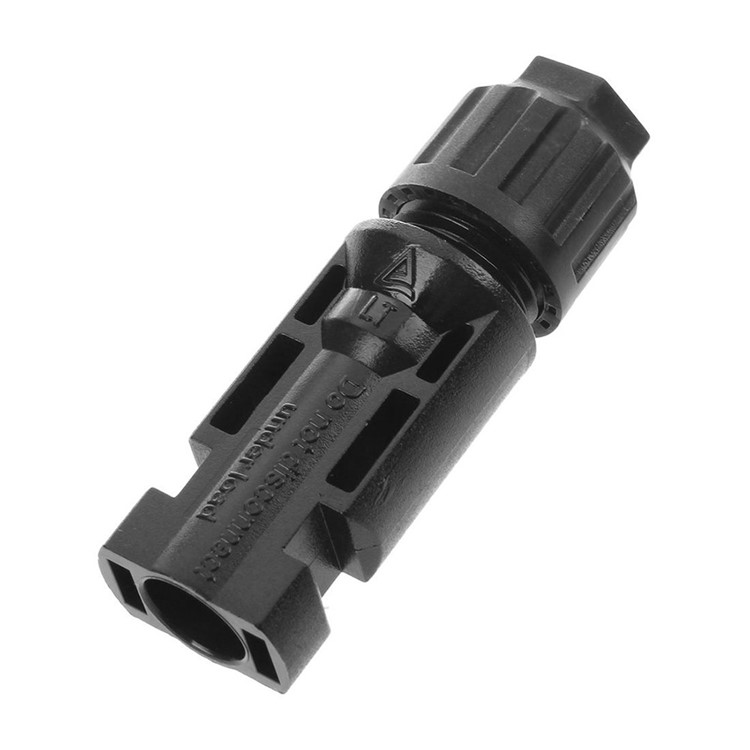

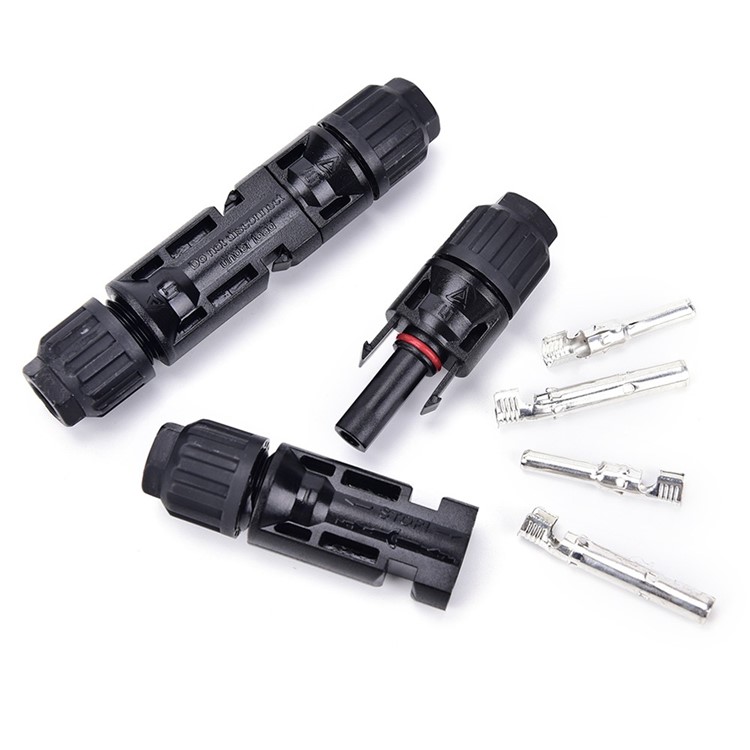

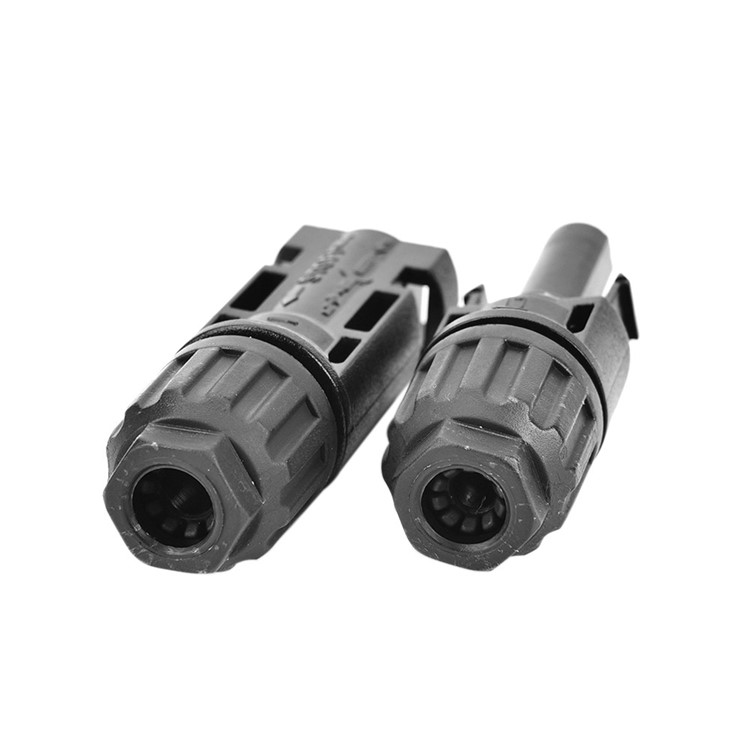

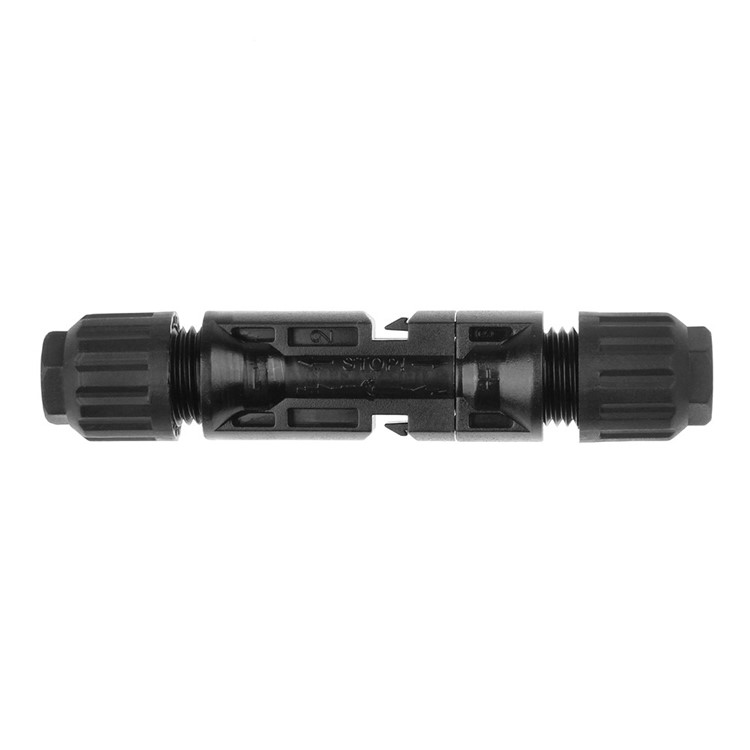

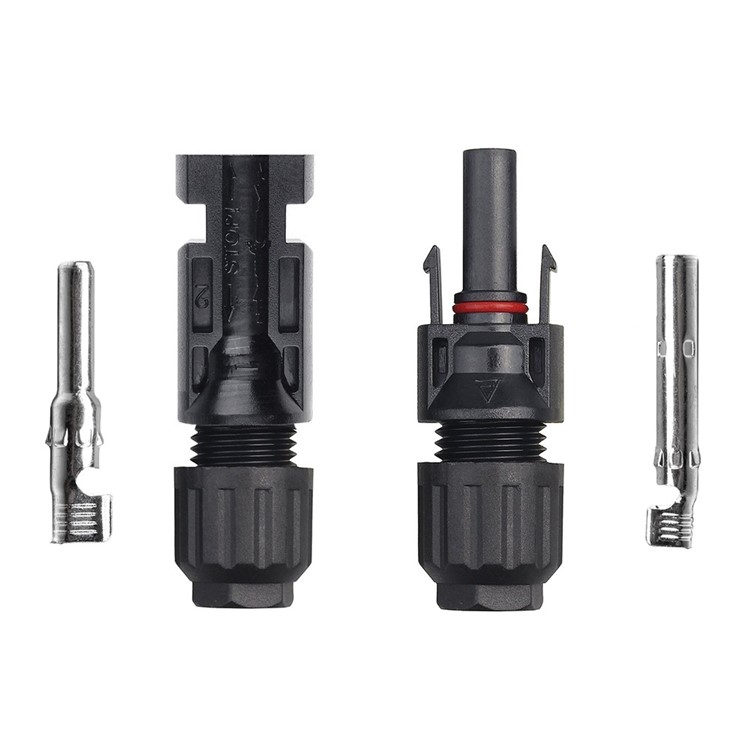

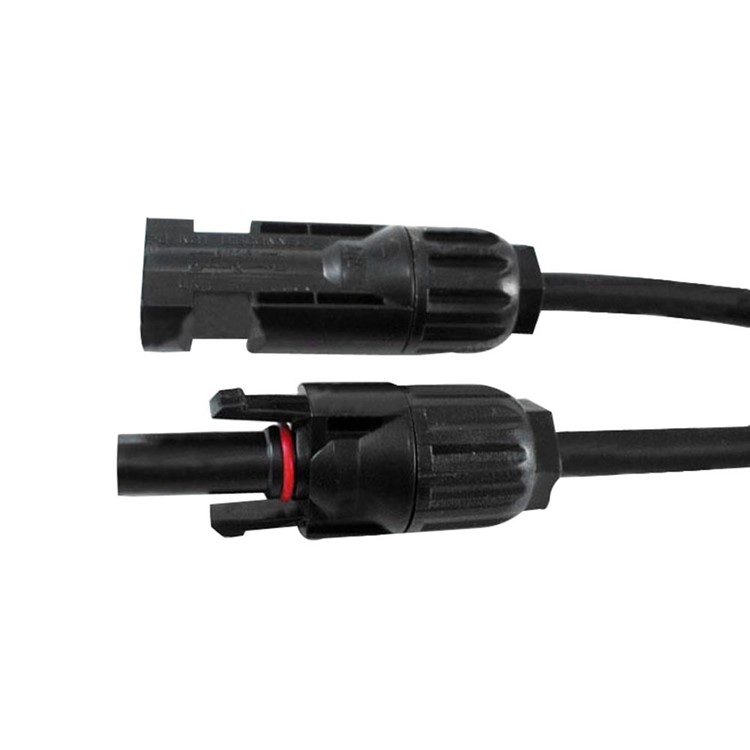

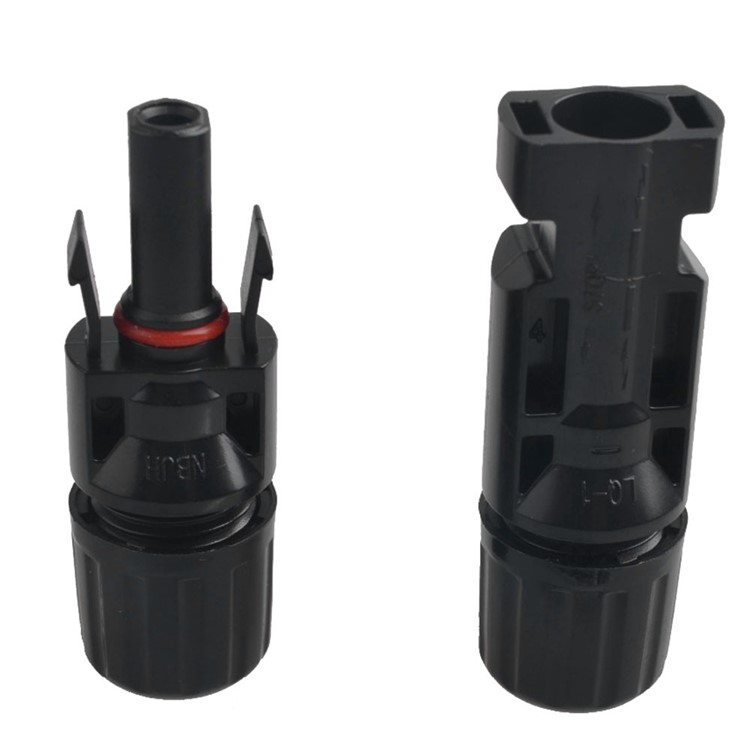

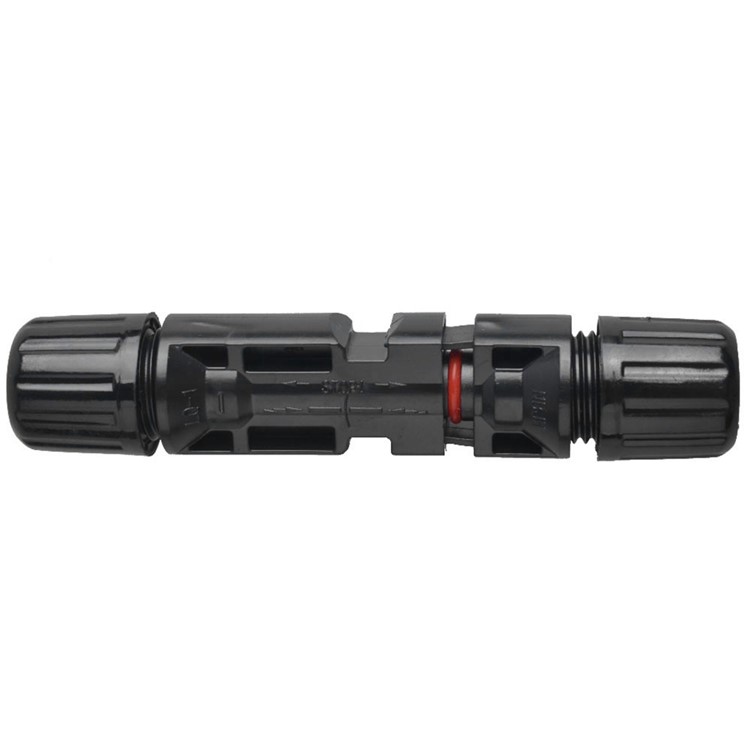

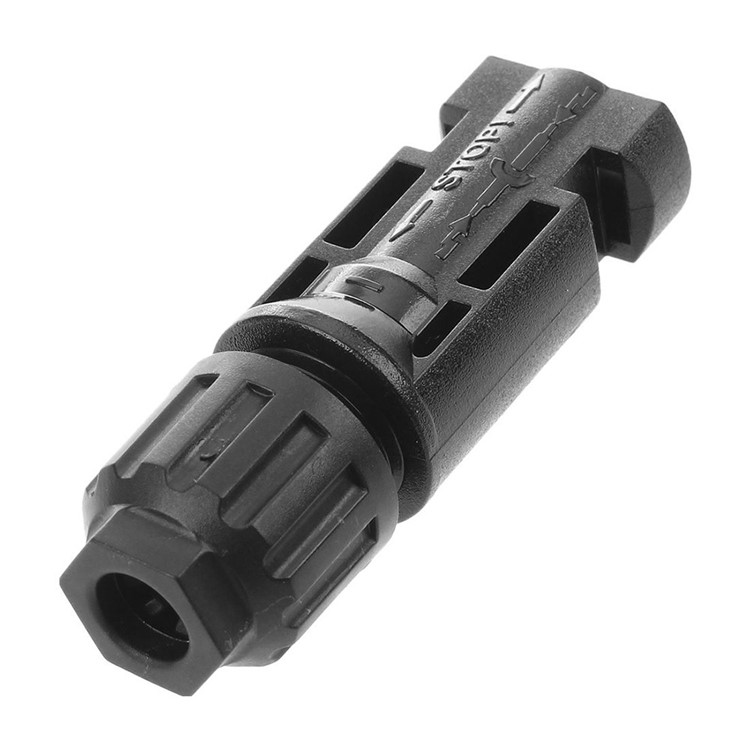

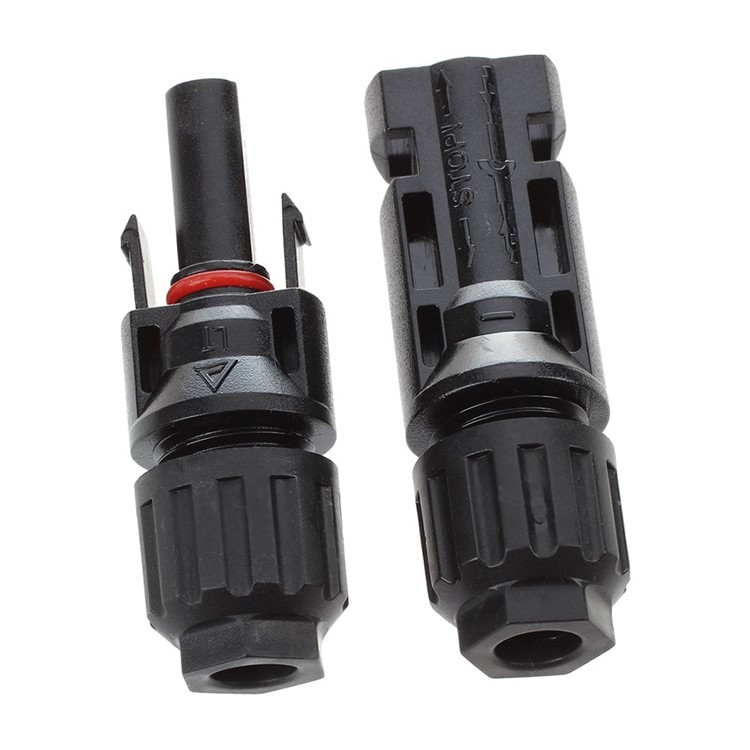

MC4 Cable Connector Male Female Photovoltaic Wire Set for Solar Panel System Waterproof – 1Pcs

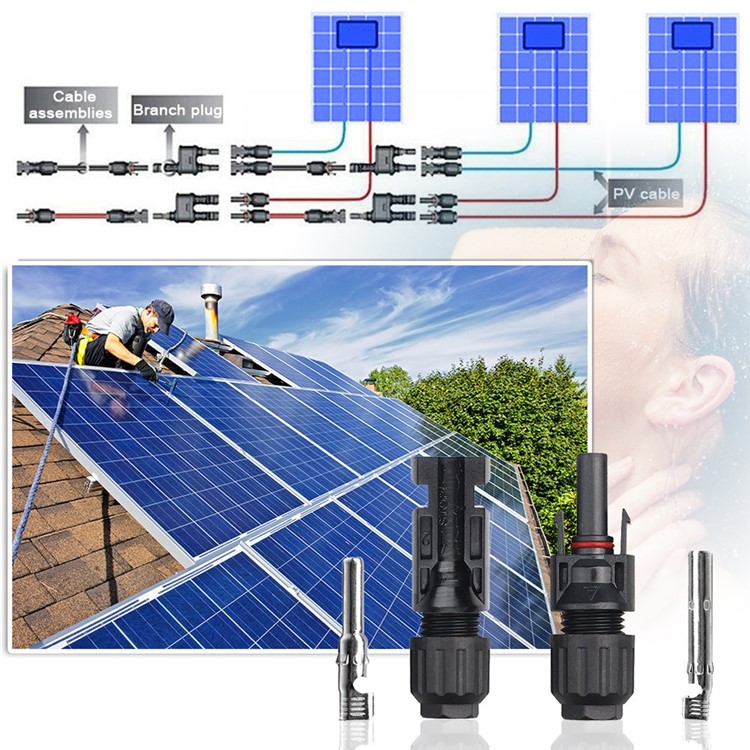

This connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations.

  • Load capability with big current and high voltage

  • Double seal rings for better waterproof effect

  • No need extra instruments for the removal of plugs and removal will not cause any harm to plugs

  • Compatible with PV cables with different insulation diameters

  • With excellent aging resistance and UV endurance, it can be used in harsh environment

  • Resistance of extra high & low temperature and fireproof

Specifications:

  • Main material: PC

  • Rated voltage: 1000 V

  • Working current: 30A

  • Withstand voltage: DC1000V

  • Contact resistance: ≤0.5mΩ

  • Insulation resistance: > 500mΩ

  • Ambient temperature: -40 °~105 °

  • Protection level: IP67

  • Safety level: II

  • Insertion force: ≤50N

  • Withdrawal force: ≥50N

  • Suitable for cables: 10, 12, 14 AWG (2.5mm2/4mm2/6mm?2;)

  • Wire size range: 2.5mm2, 4mm2, 6mm2 [AWG14, AWG12, AWG10]

  • Conventional current rating: 30A

  • Protection grade: IP67

  • Operating temperature: -40°C ~ +90°C

Package included:

  • 1 x Cable Connector
