Price:
$ 8.02

Free Shipping

For just $ 8.02 , buy Fuse Box Holder 6 Way Blade Fuse Blocks with LED Indicator 10Pcs Fuses 10Pcs Terminals for Car 12V 24V – Black from the wholesale webshop online.

Specifications

Color Black
Gross Weight 0.153kg
Volume Weight 0.134kg
Length 15.000cm
Width 10.000cm
Height 4.000cm
Weight 0.136kg
With Retail Packaging Yes

Product Description

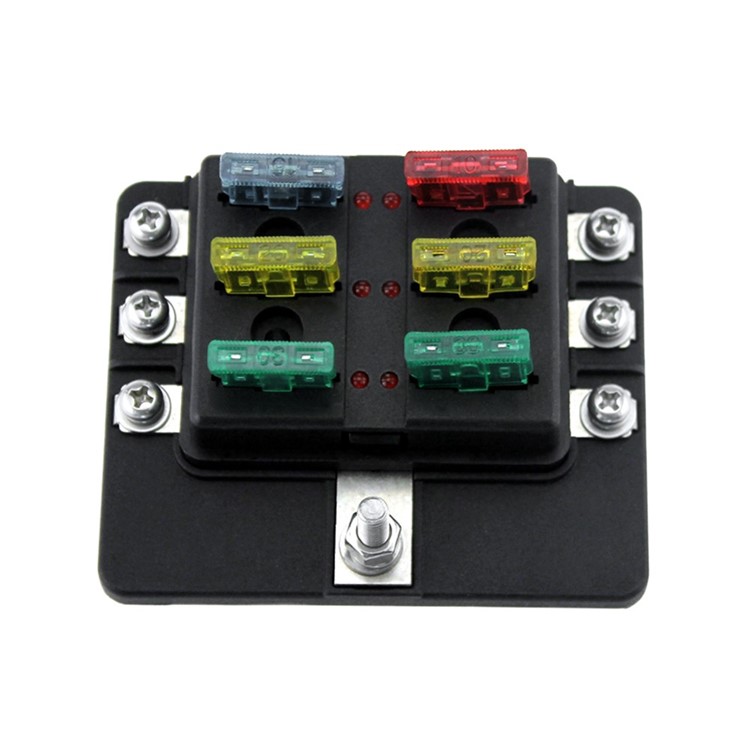

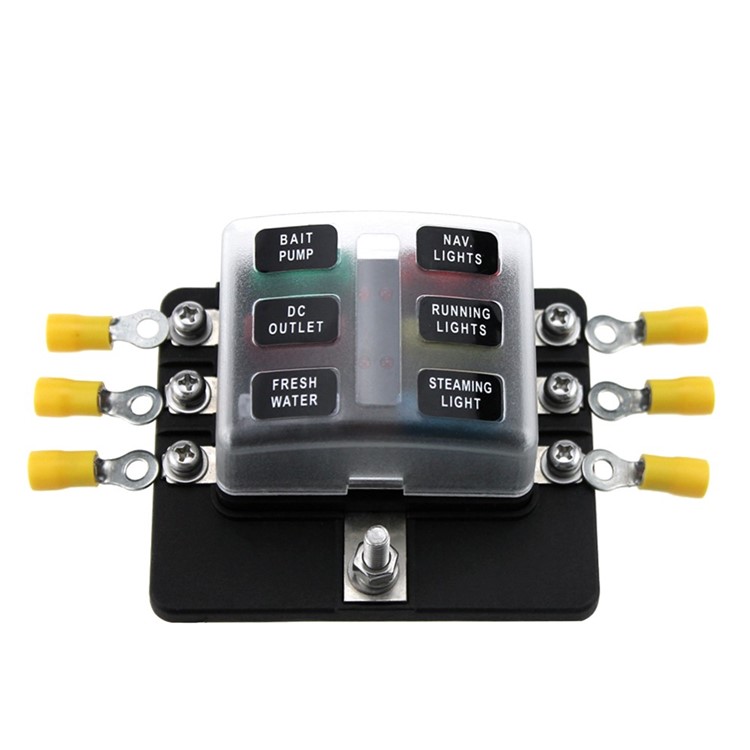

Fuse Box Holder 6 Way Blade Fuse Blocks with LED Indicator 10Pcs Fuses 10Pcs Terminals for Car 12V 24V – Black

This fuse box is suitable for all kinds of automotive and marine applications, including 6V, 12V & 24V systems (maximum voltage 32V).6 Way Blade Fuse Box with LED Indicator + 10Pcs Fuses + 10Pcs Terminals + 1Pc decal.

  • 6 way fuse box holder with 10A(red), 15A(blue), 20A(yellow), 25A(white), 30A(green) fuses

  • Screw wiring is more robust, and we provide 10pcs of terminals for you

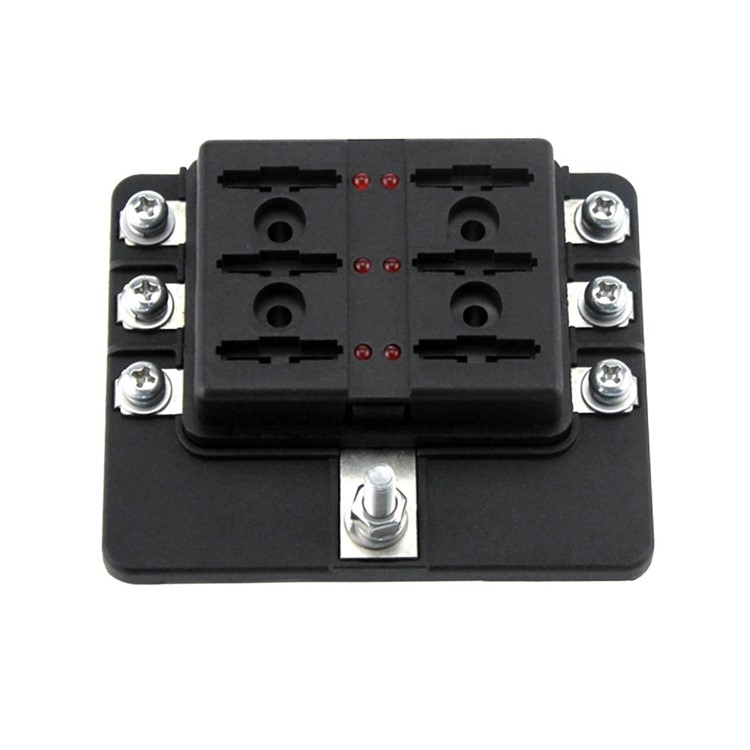

  • With red LED warning indicator,  If a fuse blows the red LED next to the problem fuse, illuminates allowing for fast and hassle free identification of a fault

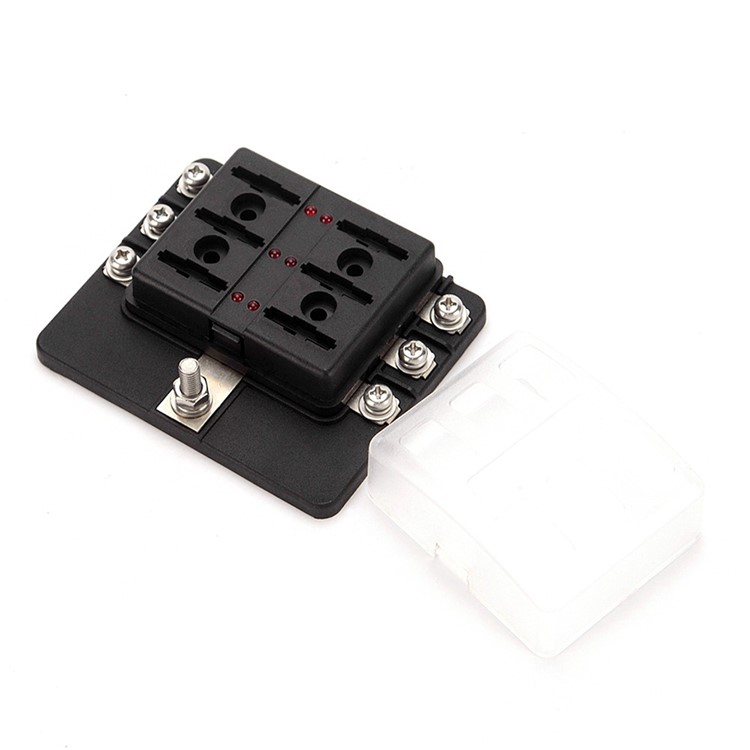

  • Transparent plastic cover with push latch system, easy to operate, splash and dust-proof design

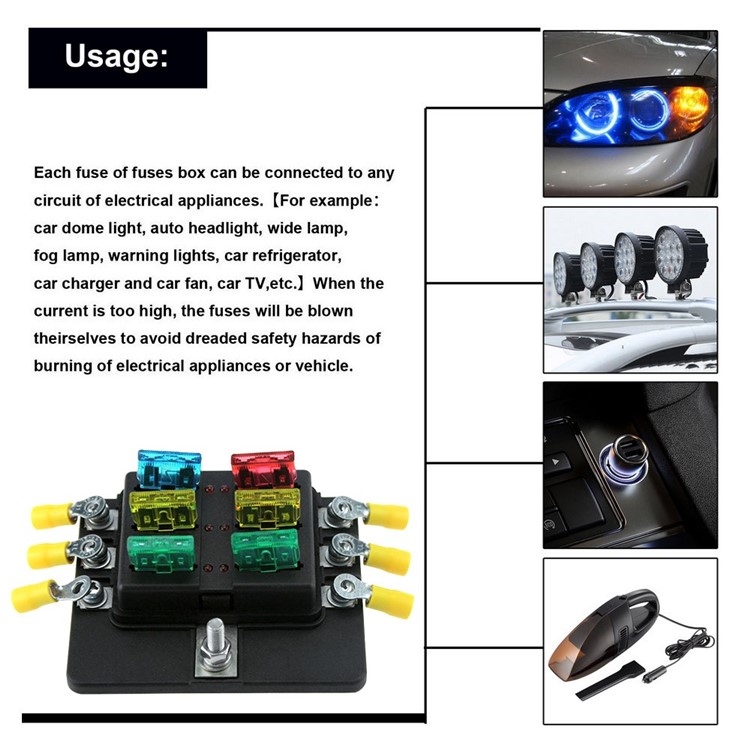

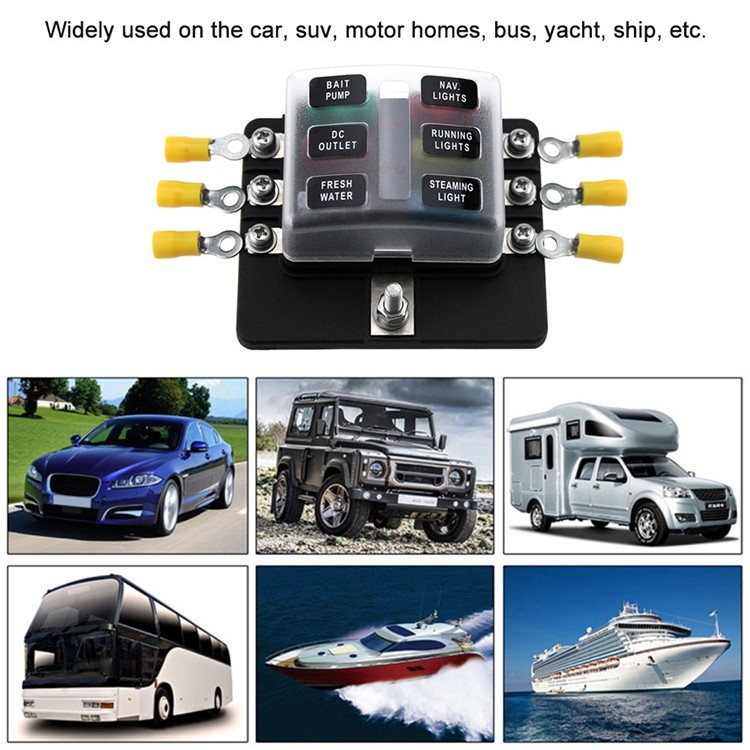

  • Widely used for car, boat, marine, caravan, yacht and so on

Specification:

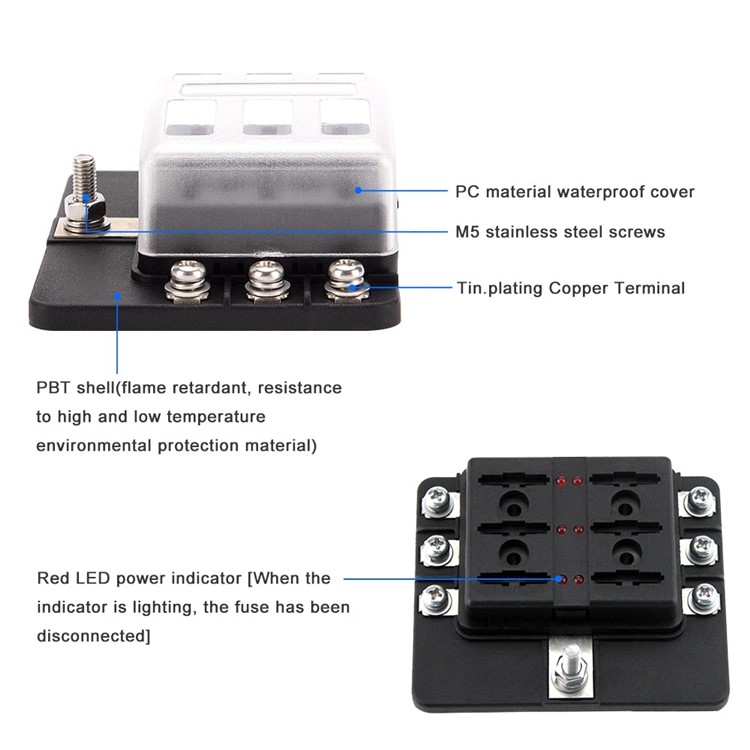

  • Material: Base: PBT, Cover: PC, Terminal: Nickel plated copper, Screw: Stainless steel, Label: PP*40

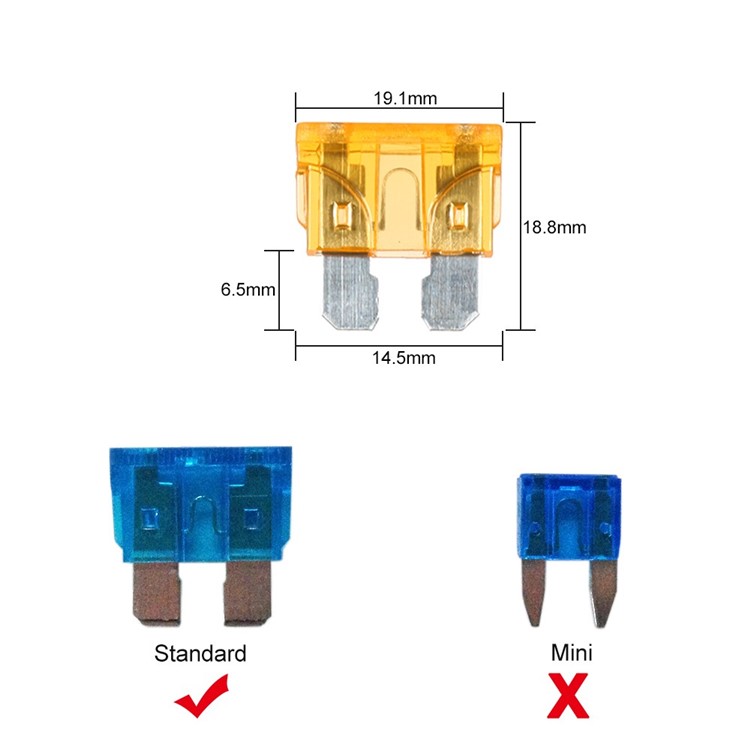

  • Accepting fuse: Standard blade fuse(ATO/ATC)

  • Quantity of circuits / fuse slots: 6

  • Input terminal rating: M5 threaded studs(100A 32V DC.max)

  • Input wire size: #4-6 AWG

  • Output terminal rating: 30A max per circuit

  • Output wire size: #12-16 AWG

  • Indicator light color: Red

  • Dimension: approx. approx. 8.5x7x3.5cm

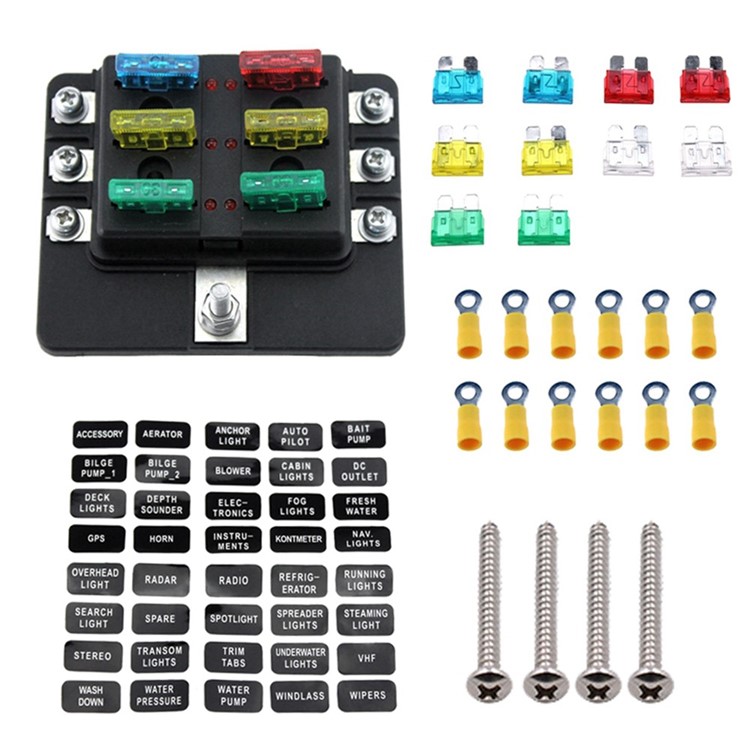

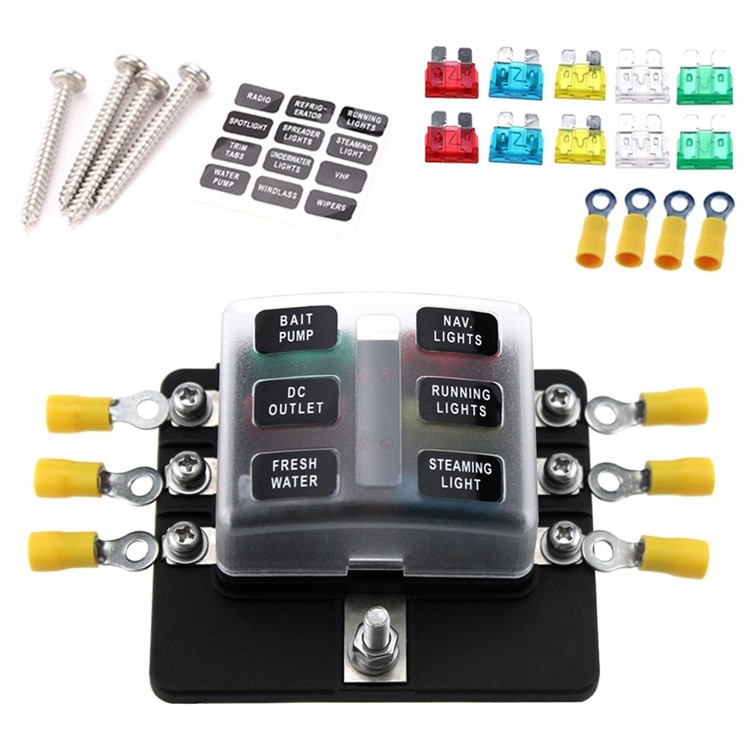

Package included:

  • 1 x Fuse Box Holder
  • 10 x Fuses
  • 10 x Connecting Terminal
  • 4 x Screws
  • 1 x Decal
TP10310309500A-1
TP10310309500A-2
TP10310309500A-3
TP10310309500A-4
TP10310309500A-5
TP10310309500A-6
TP10310309500A-7
TP10310309500A-8
TP10310309500A-9
TP10310309500A-10
TP10310309500A-11
TP10310309500A-12
TP10310309500A-13
TP10310309500A-14

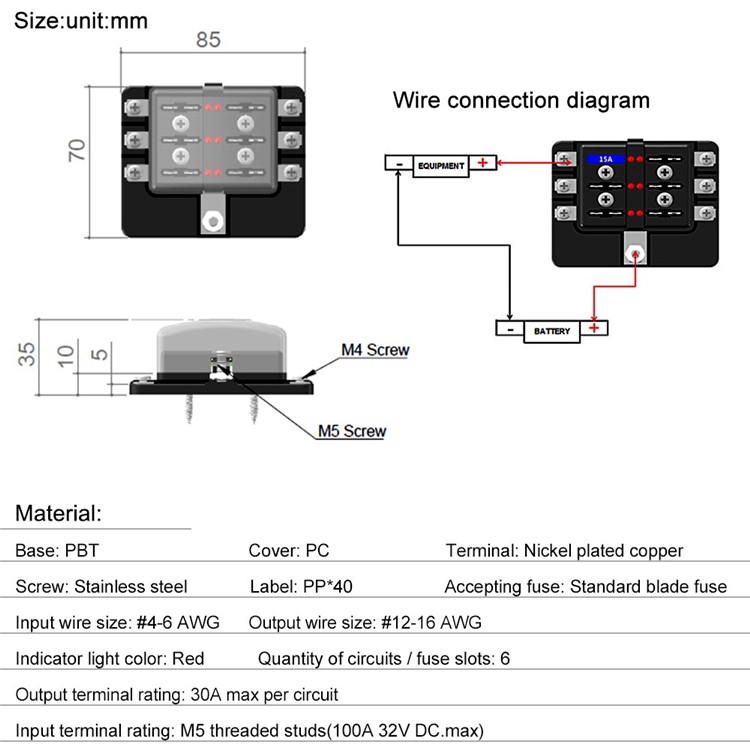

TP10310309500A-15
