Price:
$ 6.45

Free Shipping

For just $ 6.45 , buy For Arduino NANO I/O Expansion Sensor Shield RED Module + UNO R3 Nano V3.0 ATmega328P Board from the wholesale webshop online.

Specifications

Gross Weight 0.038kg
Volume Weight 0.008kg
Length 6.000cm
Width 3.000cm
Height 2.000cm
Weight 0.034kg
With Retail Packaging No

Product Description

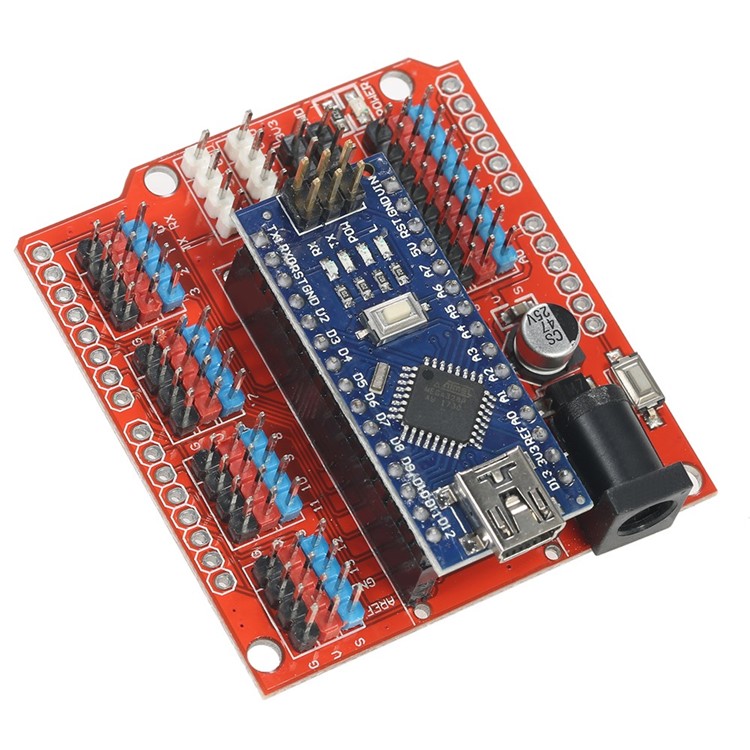

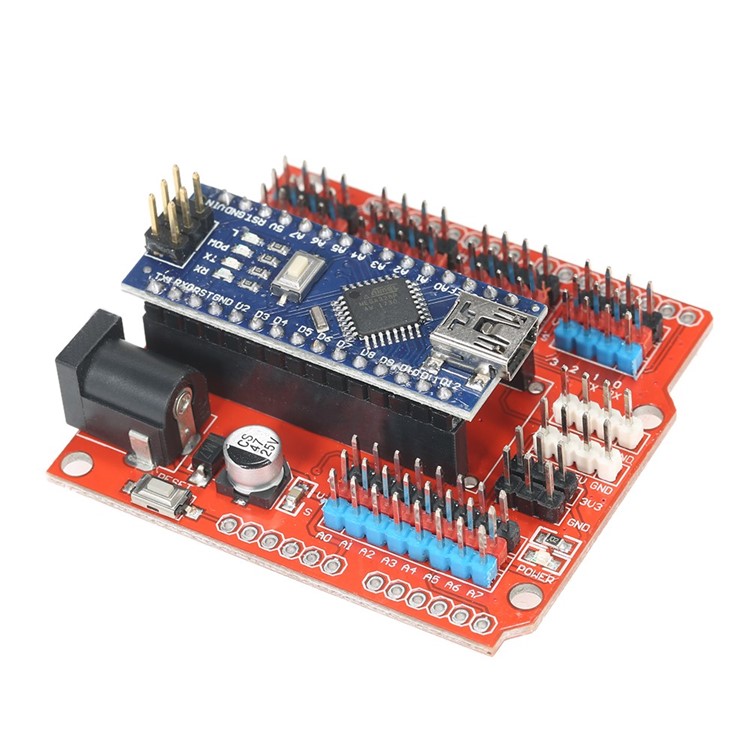

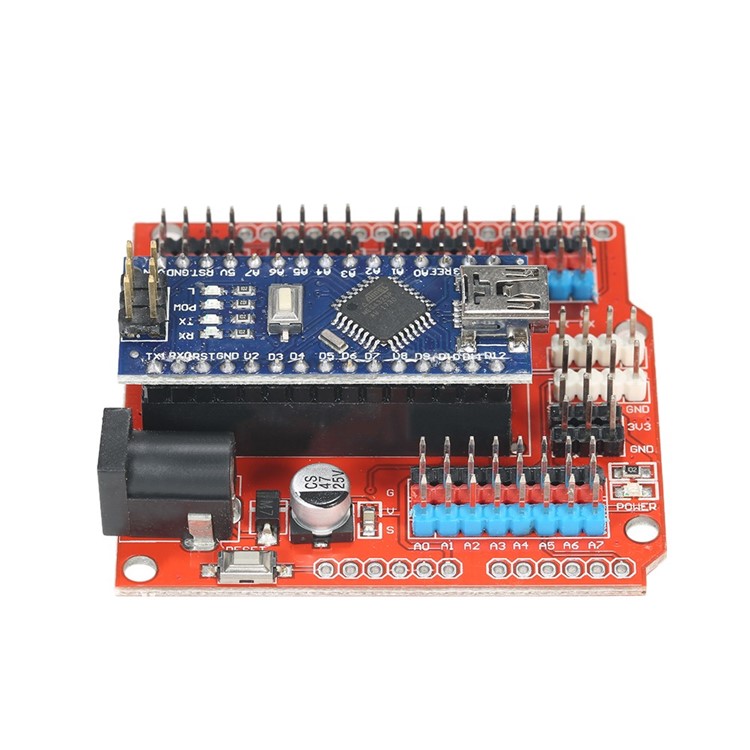

For Arduino NANO I/O Expansion Sensor Shield RED Module + UNO R3 Nano V3.0 ATmega328P Board

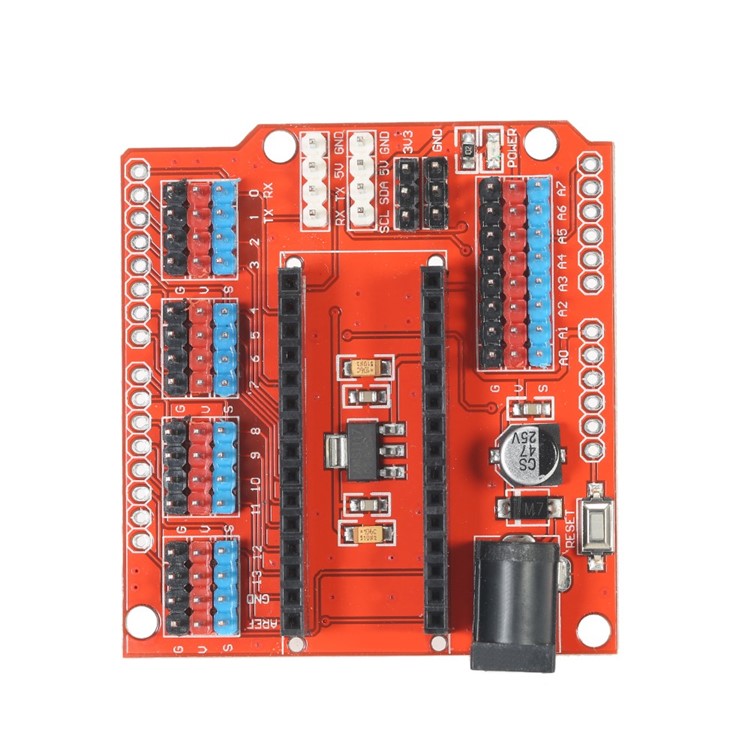

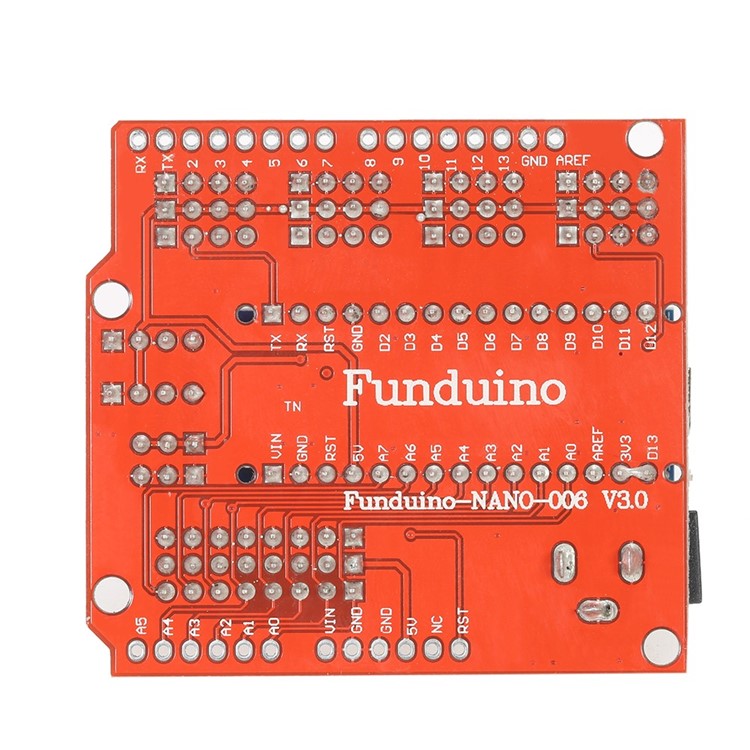

  • Nano Shield:

  • – Designed to facilitate an easy connection for Arduino Nano and many other devices

  • – A perfect companion of Nano breadboard and compatible for Arduino Nano v2.x and v3.x

  • – 14 I/O pin (servo type with GND, power and signal)

  • – 8 analog pin with power output and GND

  • – 6 PWM pin

  • – 1 Servo power input

  • – 5 I2C expansion pin

  • – AREF output

  • – 3.3V output

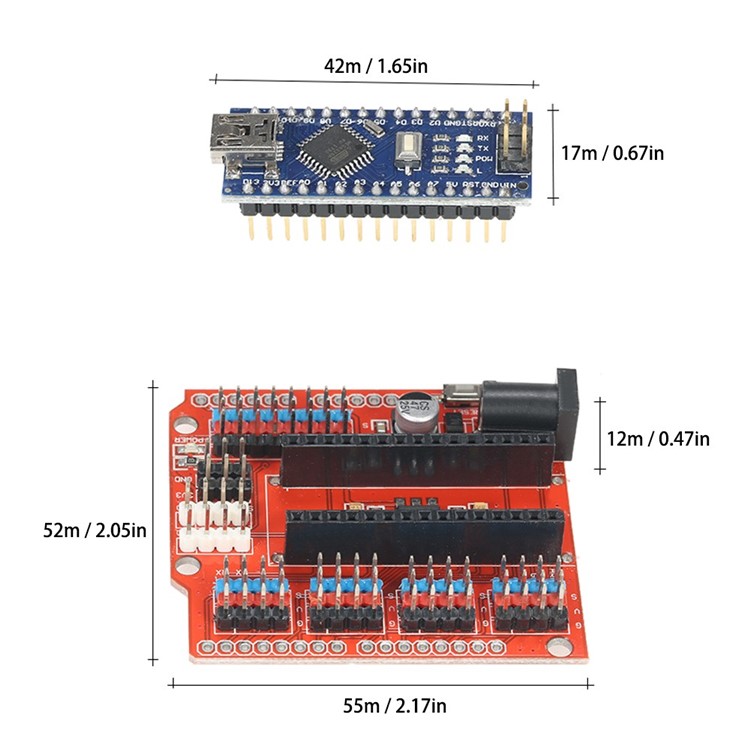

  • – Size: 55 * 52 * 12mm

  • – Weight: 20g

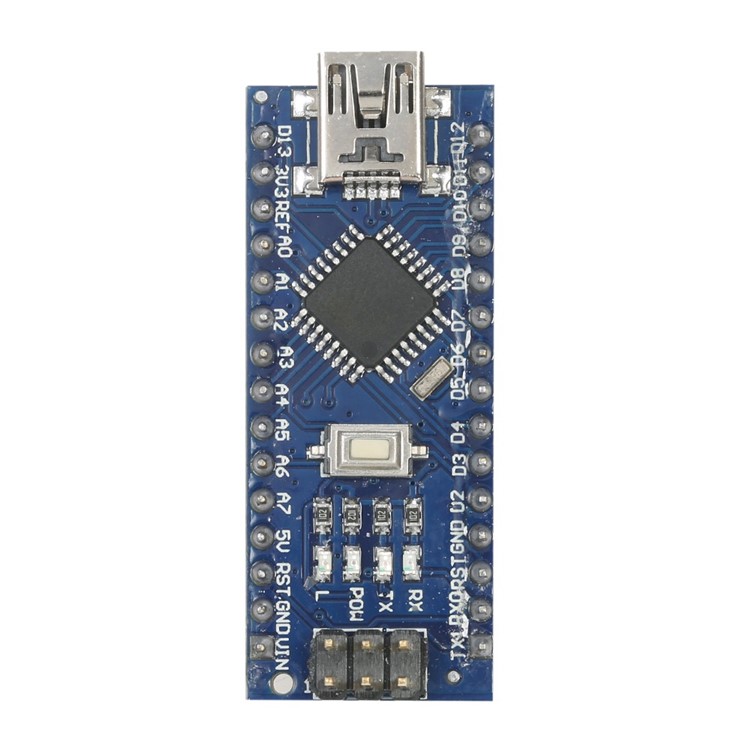

  • Nano Board:

  • – CH340G Replace FT232RL

  • – Operating Voltage(logic level): 5V

  • – 8 Analog Inputs Ports: A0 ~ A7

  • – 14 Digital Input / Output Ports: TX, RX, D2 ~ D13

  • – 1 Pair of TTL Level Serial Transceiver Ports: RX / TX

  • – Using Atmel Atmega328P-AU MCU

  • – Bootloader Installed on it

  • – Support USB Download and Power

  • – Support for External 5V ~ 12V DC Power Supply

  • – Support Power Supply by 9V Battery

  • – Pin Headers Are Professionally Soldered and Ready to Be Used

  • – Size: 42 * 17 * 19mm

  • – Weight: 6g

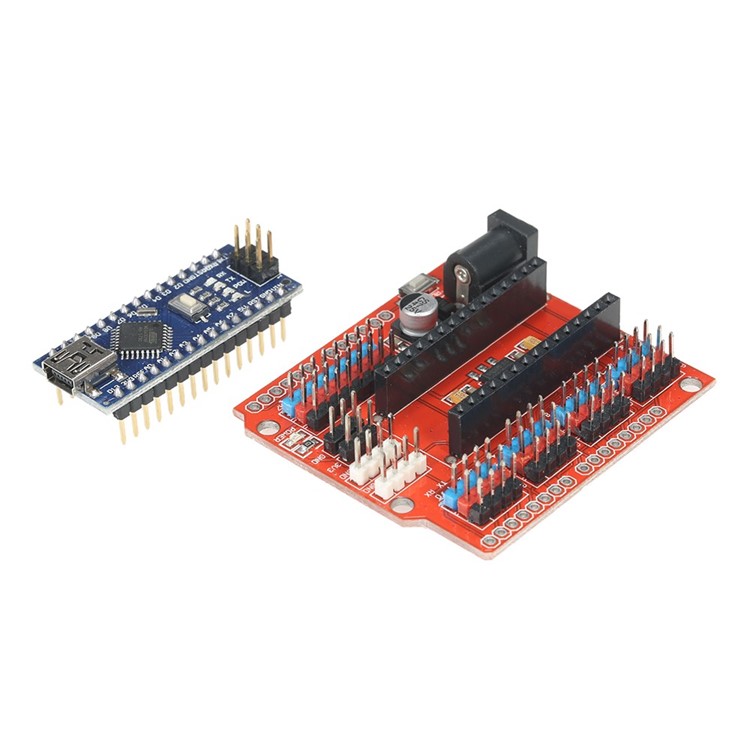

Package included:

  • 1 x Nano Sensor Shield
  • 1 x Nano V3.0 Board
TP10310301806A-1
TP10310301806A-2
TP10310301806A-3
TP10310301806A-4
TP10310301806A-5
TP10310301806A-6
TP10310301806A-7
TP10310301806A-8

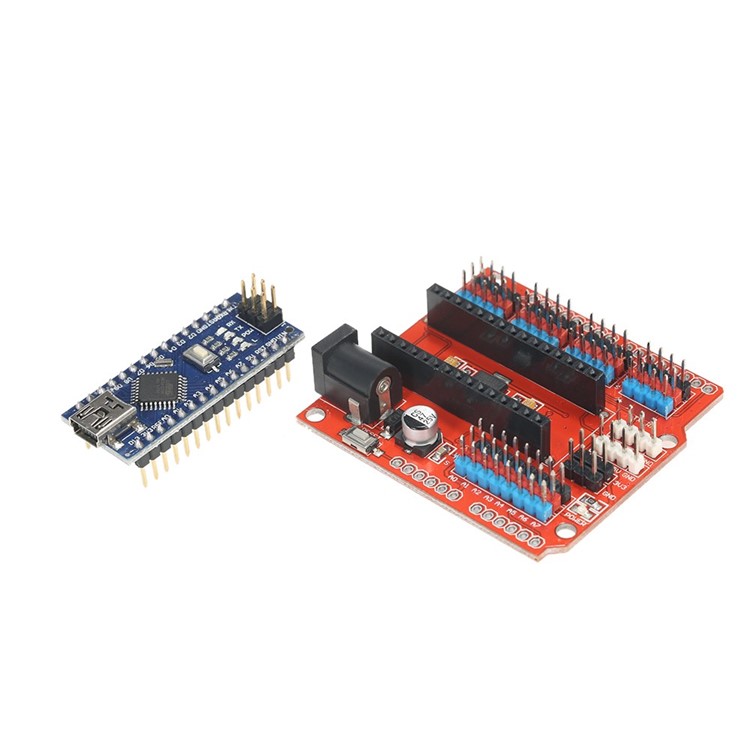

TP10310301806A-9
