Price:
$ 11.45

Free Shipping

For just $ 11.45 , buy DC 12V-36V 500W Brushless Motor Controller Without Hall PWM Control Balanced Car Driver Board from the wholesale webshop online.

Specifications

Gross Weight 0.034kg
Volume Weight 0.020kg
Length 9.000cm
Width 6.500cm
Height 1.500cm
Weight 0.030kg
With Retail Packaging No

Product Description

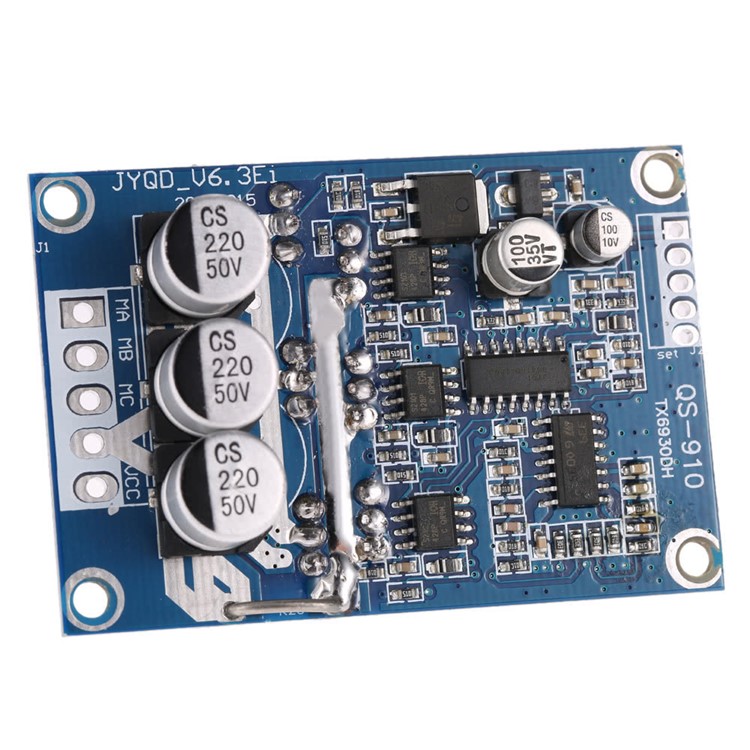

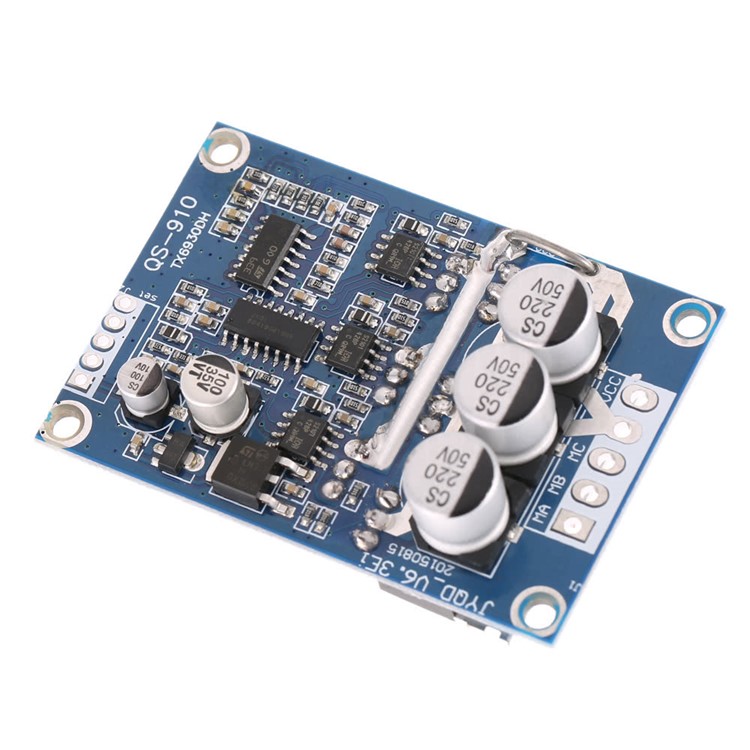

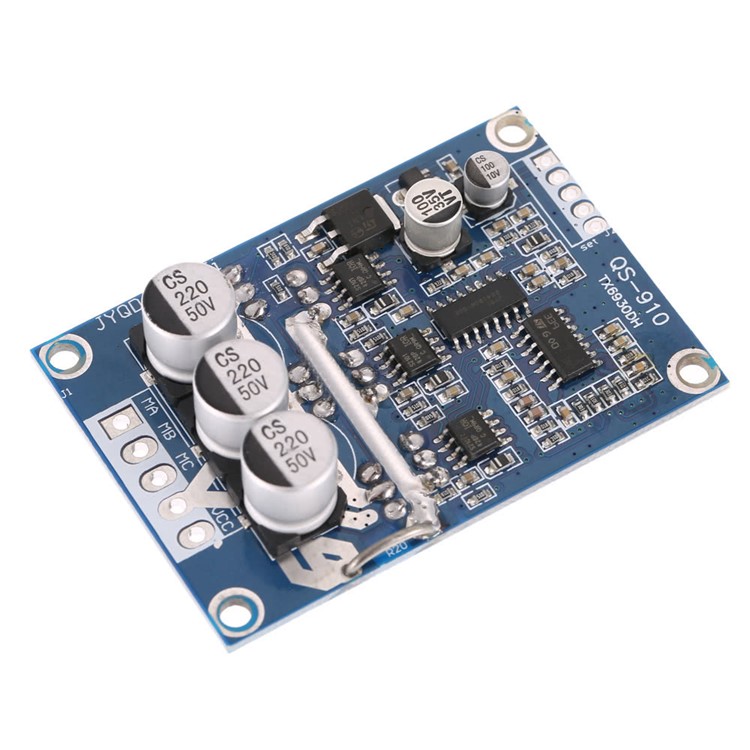

DC 12V-36V 500W Brushless Motor Controller Without Hall PWM Control Balanced Car Driver Board
  • SMT process, high quality

  • DC brushless motor driver board

  • Operating voltage: DC 12V to 36V; operating current <=15A

  • With speed control function, 0.1V-5V speed voltage

  • Over-current protection and speed signal

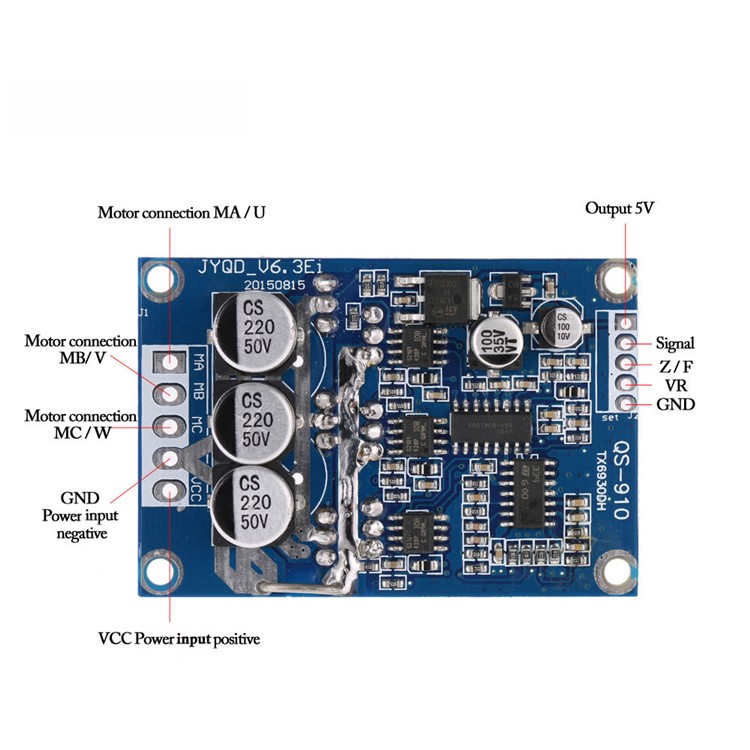

  • Note: This driver board only fits for DC Brushless without Hall sensor three-wire motors to use(Default "Hall" on the board is no function, doesn't need to connect)

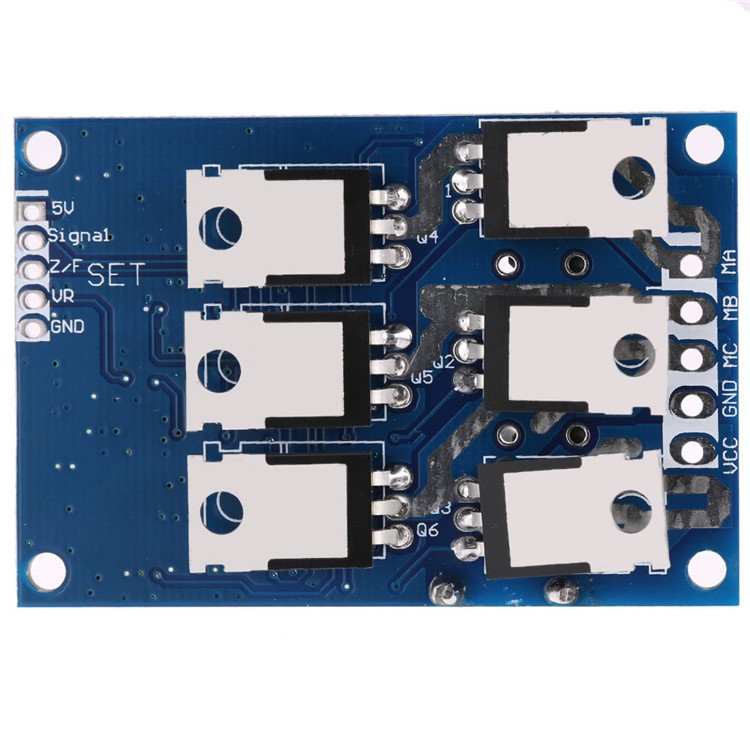

  • Tips: If you use less than 60W, without additional heat sink; please make sure to add heat sink when exceed 60W. When installing the heat sink, you must pay attention to the insulation for 6pcs MOS on the back of module. It will damage the driver board permanently without insulation

Specification:

  • Operating Voltage: DC12-36V

  • Operating Current: <=15A

  • Drive Power: <=500W

  • Speed Voltage: 0.1V-5V

  • Operating Temperature: -40~85 degrees Celsius

  • Humidity: <=90%RH

  • Over-current Protection: Yes

  • Speed Signal: Pulse Speed Signal

  • Speed Control Function: Yes (external potentimeter control)

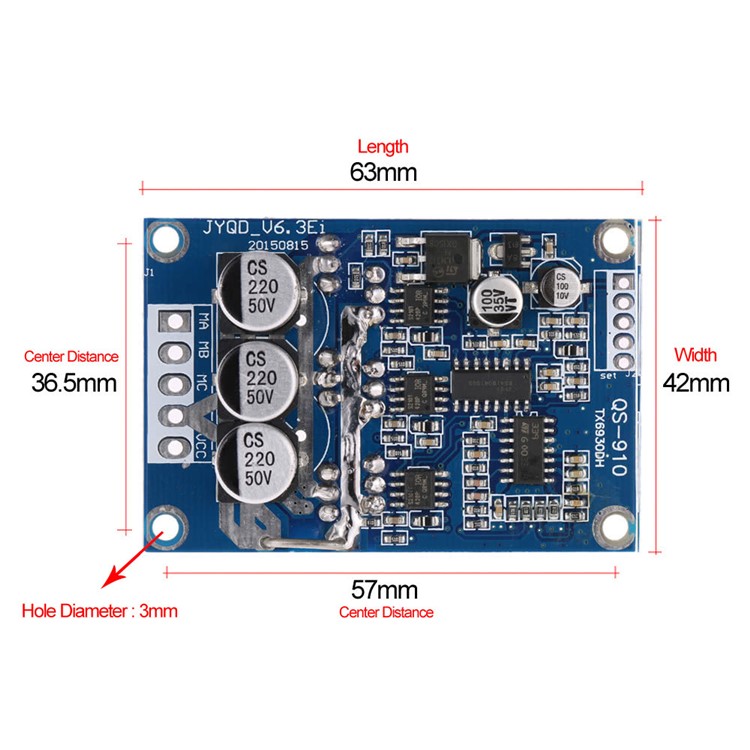

  • PCB Size: 63x42x17mm

  • Weight: 30g

Package included:

  • 1 x Brushless Motor Controller
TP10310306887A-1
TP10310306887A-2
TP10310306887A-3
TP10310306887A-4
TP10310306887A-5
TP10310306887A-6
TP10310306887A-7
TP10310306887A-8
TP10310306887A-9
