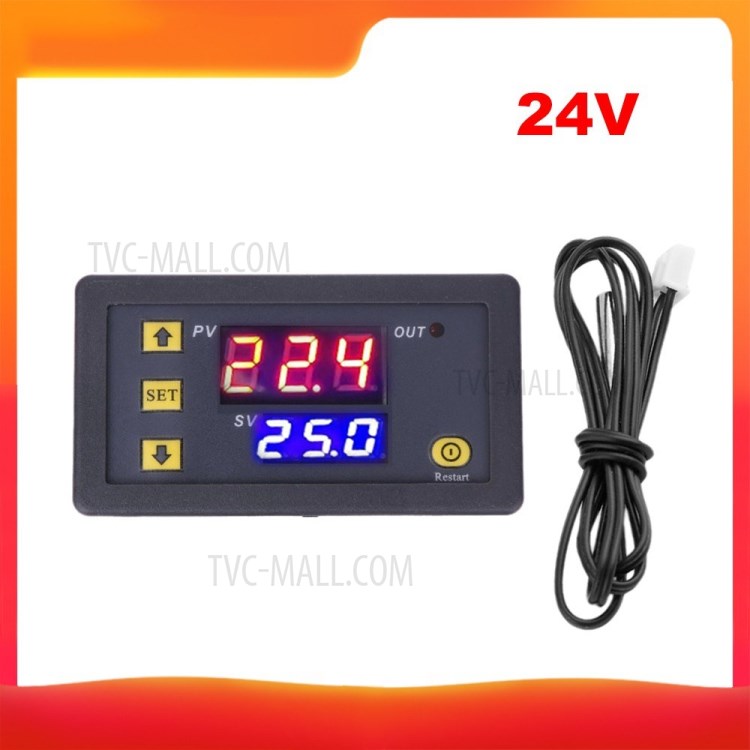

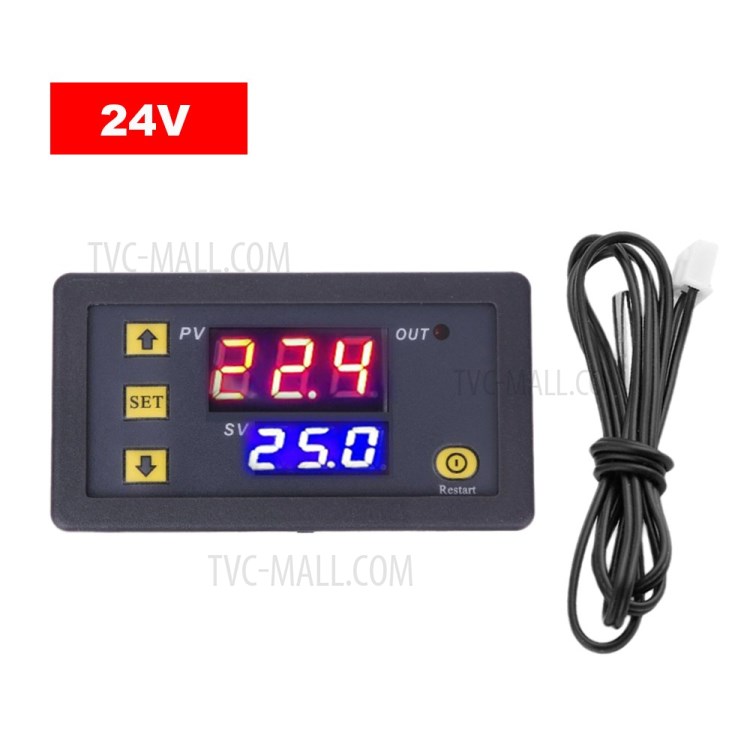

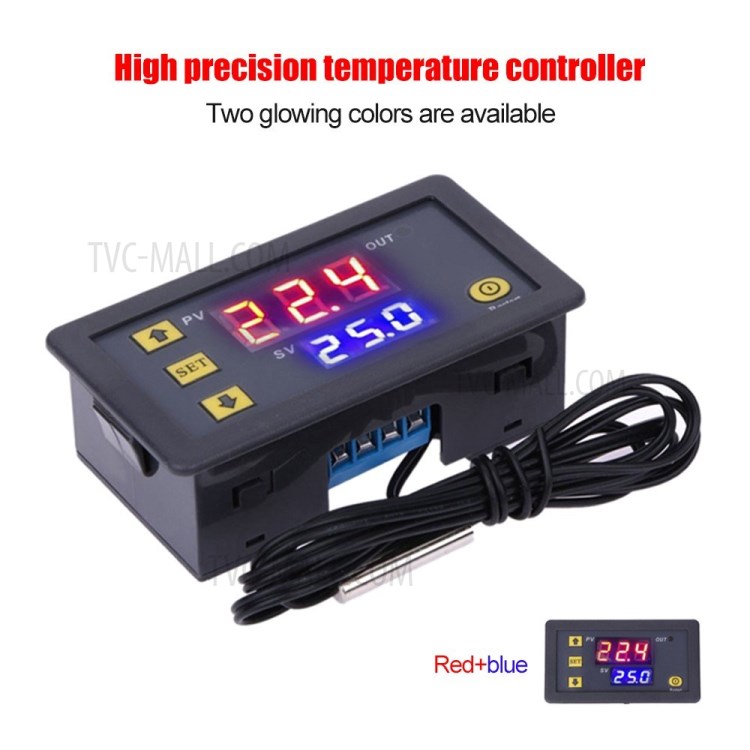

3230 Temperature Controller Digital Display Thermostat Module Temperature Control Switch Micro Heating Cooling Temperature Control Panel – 24V

This product is a mini temperature controller, it can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment and other temperature-controlled system.

• Mini temperature controller, easy to operate and use

• With large and clear LEDs display for better readability

• It has a wide temperature measuring range

• Heating and cooling control, support switch modes between cooling mode and heating mode

• Relay output

• The delay function can be turned on to protect the service life of the refrigerator or heater when it is needed for delay

• Wide temperature measuring range from -55 Celsius degree to 120 Celsius degree

• Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, boiler, steamer, industrial equipment and other temperature control applications

Specifications:

• Item type: Temperature Controller

• Temperature measuring range: -50 Celsius degree ~ 99 Celsius degree

• Resolution: -9.9 Celsius degree ~99.9 Celsius degree: 0.1℃

• Accuracy: 1 Celsius degree

• Sensor: NTC10K Waterproof sensor

• Environmental requirements: -10-60 Celsius degree, humidity 20%-75%RH

• Refresh Rate: about 0.5s

• Dimension:79mm x 43mm

• Cutting Size:76mm x 39mm
